A technical guide to understanding the function weather barriers and rainscreens play in a wall, choosing the right products and installation tips for optimum performance.

They're officially known equally water-resistive barriers or WRBs, sometimes weather condition-resistive barriers, but in practical terms they are more usually chosen housewraps and conditions barriers. With so many options I programme to randomly switch betwixt terms just to alleviate the monotony and keep u.s.a. all entertained.

A few other linguistic options to mention - cladding is the same equally siding, furring strips are the same equally strapping. Those and your atmospheric condition bulwark all installed properly are what defines a ventilated rainscreen.

Non-agglutinative rainscreen  © Ecohome

There are many different potential wall assemblies, and many products with different characteristics that can exist used in unlike cases. For the sake of simplicity and not getting off on a bunch of tangents, in this article we will stick with the bread and butter wall assembly we all know - a stud wall with exterior capsule, housewrap, strapping and siding. Other options for wall assemblies can be found in our building guide.

Simply like a canvass or nylon tent, h2o will drain down a water-resistive bulwark only standing water would bleed through them, albeit slowly. Since moisture can evaporate through WRBs, any humidity that accumulates in a wall associates has a chance to escape.

At that place in a nutshell is the purpose of a atmospheric condition barrier - to provide a drainage plane that protects sensitive materials from direct exposure to precipitation at the same time that it allows walls to dry out out.

It's worth a mention at this betoken that weather barriers are often intended to deed every bit an air barrier as well, but the nearly mutual installation techniques (staples, nails and hastily installed tape) mean information technology is a rare instance when they really do a good chore at air sealing. Manufacturers will rightly claim their products are a suitable selection for an air bulwark, and they nigh certainly are. The failure of weather barriers to perform well in that capacity lies entirely with how they are installed.

Randomly peppering your housewrap or home wrap with staples creates a lot of picayune holes where air can enter and escape. As well, when exposed to the extreme temperature shifts between summer and wintertime and the endless move of a loose conditions barrier due to wind and air pressure differences, the solvent-based tapes we almost often use may go breakable over time and no longer adhere.

You'll take better luck using weather barriers as air barriers if you identify staples where they will be covered past strapping, or put record over them. Don't over-staple it for no reason, staples merely take to hold information technology upward until the strapping is on. And if y'all can wait for a at-home twenty-four hour period with no wind you will really but need to staple it at the elevation (where information technology will be overlapped anyway) and let it hang. Better yet would be forgoing staples altogether and using nails with plastic washers.

Exist meticulous when taping joints and try to utilise brands of tape that are more suitable for farthermost temperature changes. Siga,Delta Multi-Band and Air Finish are 3 examples of tapes with much improve adhesion.

Skin-and-stick membranes:

An alternative to the commonly used non-adhesive housewraps are the 'peel-and-stick' membranes, and if you lot'd like a fancier word for them, go with this - self-adhering air and water-resistive barriers.

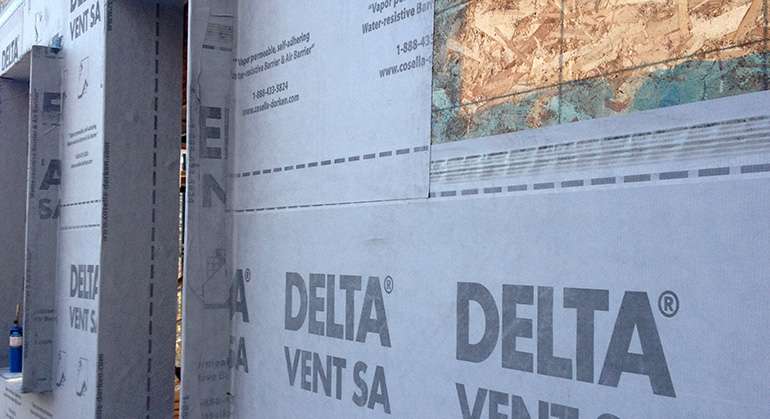

Peel-and-stick vapour-permeable weather condition barrier © Ecohome

They're still vapour permeable, but membranes that stick to the sheathing are much less susceptible to harm caused by wind force per unit area.

Since a conventional housewrap is normally held on by staples, the back and forth ballooning of those loose weather barriers tin can over time enlarge staple and nail holes and reduce their ability to prevent air leakage. With no stapling needed and being fully adhered to the capsule, current of air and air force per unit area isn't a concern for air bulwark immovability with peel-and-stick membranes.

Depending on the substrate you're sticking the membrane to, manufacturers may recommend they be installed by first applying a primer to the surface for meliorate and longer lasting adhesion. Including a primer in the mix will besides bear upon the vapour permeability of your wall outside; more on that in a moment.

Self-adhering membranes are not all the same:

Like so many other building products, it is of import that you lot understand the properties of unlike membranes earlier choosing one, don't just selection ane randomly off the shelf based on toll or brand recognition. Some are vapour permeable and will allow walls to dry, some volition not. They both take suitable applications but shouldn't exist randomly interchanged.

For the standard wall assembly we are talking about here, make certain that any membrane you choose as your weather bulwark is vapour permeable, and the more permeable the better. Look for the vapour permeance rating (how much moisture tin can laissez passer though it); it should be on the product itself simply besides on the technical data sheets of company websites.

1 Perm and sixty Ng* (U.S. and Canadian ratings respectively) are the benchmark permeability rates for what defines a blazon Ii residential vapour barrier. Products rated below those numbers are vapour barriers, those rated betwixt 1 and 10 perms are considered vapour retarders. The higher the perm rating or Ng, the quicker moisture tin can evaporate.

*Ng stands for Nanograms, or billionths of a gram of water. That sixty Ng number refers to the amount of water that will pass through a square meter of a fabric in a 2d [ 60 ng /( Pa.south.m2 )].

one U.S. perm is actually 57 Ng, that iii billionths of a gram difference between 57 and 60 is what you telephone call 'close enough for jazz'. And forget the 60 Ng for now, nosotros''ll get with perms only.

Categorizations of building materials based on their permeability rates:

Vapour impermeable 0.1 perms or less
Vapour semi-impermeable 1.0 perm or less and greater than  0.1 perms
Vapour semi-permeable x perms or less and greater than ane.0 perms
Vapour permeable Greater than 10 perms

Understanding vapour permeability:

All nosotros are talking almost so far are the stand up alone housewraps everyone is used to seeing, which will range from nearly six to lx perms. To become farther downwards this rabbit hole, you will detect that your sheathing will bear upon vapour permeability of the wall assembly besides. [Read more about material permeability here].

Conclusions about the vapour permeability of sheathing seem to differ heavily from different sources, We will run with the pack on this one for at present, using the numbers nearly manufacturers cite.

7/16" OSB (oriented strand board) has a rating of about two perms; compare that to half-inch plywood which is about 10 perms. And those rates will change with thickness - 3/4 inch OSB is rated about 40 Ng (2/3rds of a perm) which actually qualifies it as a vapour barrier, and can be used as such on the interior. [Here's an instance of how osb can be used equally a vapor bulwark]

And then yous need to look at the wall as a whole, and don't assume that the perm rating of the weather condition bulwark yous choose will ascertain the permeability of the exterior of your wall equally a whole.

Starting off with such a depression-perm sheathing equally OSB means even a high-perm weather bulwark may take little consequence, so the added cost of plywood is something that may exist worth considering investing in for your overall wall durability, as it is five times more permeable to vapour than OSB.

Besides important to remember is that if you are putting a rigid board insulation on the exterior, that as well will accept a vapour permeability rating that should be considered. As an example, two inches of Roxul ComfortBoard is rated between 30 and 40 perms, compared to 2 inches of EPS foam which is near i perm, and two inches of XPS foam is simply about .five perms. Meaning, past putting 2 inches of foam on the outside of the house you have finer just installed an exterior vapour barrier.

Permeability is tested in two manners - 'dry cup' and 'wet cup'. Each method simulates the vapour drive in a different management, so the resulting numbers vary, and manufacturers may not e'er tell you which test method was used.

Delta Vent SA peel and stick weather barrier technical data sheet

To use Vent SA from Cosella-Dörken equally an example (which to our knowledge has the highest perm rating of skin-and-stick membranes), their 'moisture cup' examination resulted in a rating of 31 perms, dry cup testing was l perms. Not all manufacturers will list both numbers or fifty-fifty tell you which issue they are posting, presume they are putting their best pes forward and giving y'all the more than favourable looking number.

A rainscreen allows walls to dry:

'Ventilated rainscreen' is a term that gets somewhat misunderstood and divers differently at times. It isn't an private production or cloth, only a design feature. The combination of a weather barrier, strapping and exterior cladding and ventilation openings at the tiptop and bottom together create a 'rainscreen'. The intention of a rainscreen is to protect walls from a driving pelting while allowing whatever water that does penetrate to drain out, and letting air move through it so it can dry.

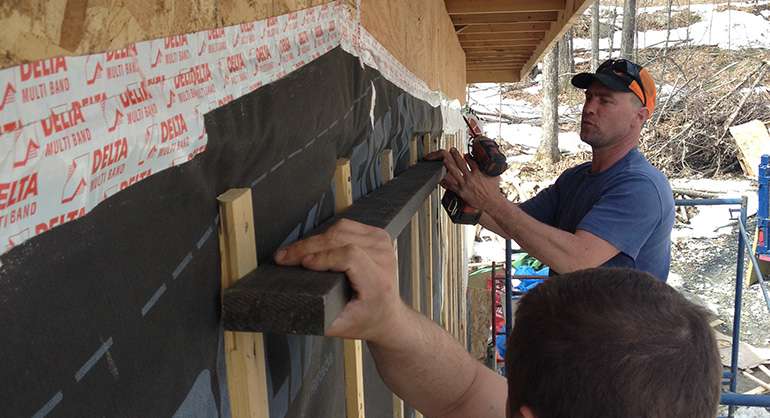

how to install siding © Ecohome

Installing siding directly against your weather barrier will greatly reduce the ability of a wall to dry. This isn't very common anymore simply information technology does withal happen. Always install strapping to separate the siding from the conditions barrier. And a common practice to avoid is installing strapping horizontally. That prevents both the drainage and air convection that is essential for walls to stay dry. H2o drains down and warm air rises - don't stop that from happening.

If your siding pick requires horizontal strapping (like board and batten), include some kind of spacer in back of information technology so water tin still drain and air can withal rise. Without that infinite behind it, horizontal strapping can atomic number 82 to a small amount of standing water that can saturate building materials.

That gap in a rain screen doesn't need to be significant, only enough for water to drain and air to ascension. If the conditions barrier is tightly attached, every bit in the case of a pare-and-stick membrane or is part of a rigid board product, building scientists say as trivial as 1/16th gap provides a capillary pause, that will permit liquid h2o bleed out.

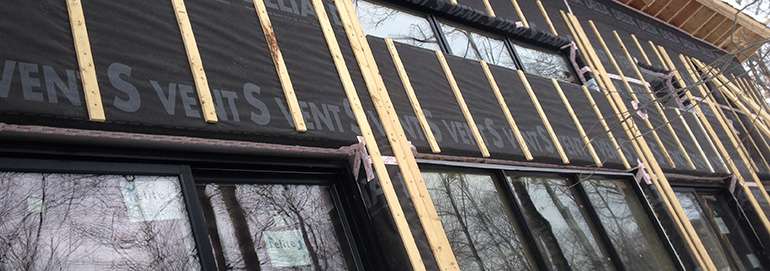

ventilated air space and rainscreen

Building walls that tin dry © Ecohome

If you have a loose or bunched upwardly atmospheric condition barrier that might block that space, you may be wise to install a thicker spacer to ensure that infinite is continuous. Care during installation is what will decide how well your rainscreen blocks and releases wet.
